Custom Cemented Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Chemical Equipment

Place of Origin : China

MOQ : 5

Price : $13-71

Material : 100% pure tungsten carbide powder

Surface : Glossy

Shape : Circle

Color : Black

Grade : YG8/YG9C/YG11C

Density : 14.90 g/cm³

Hardness : 93.0 HRA

TRS : 2700 Mpa

Porosity : A02/B00/C00

Grain size : 0.6-0.8 μm

WC Composition : 93.5%

Ni Composition : 6.0%

TaC Composition : 0.5%

Minimum Order : 5 PIECES

Power Source : Electric

Contact Now

Custom Cemented Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Chemical Equipment

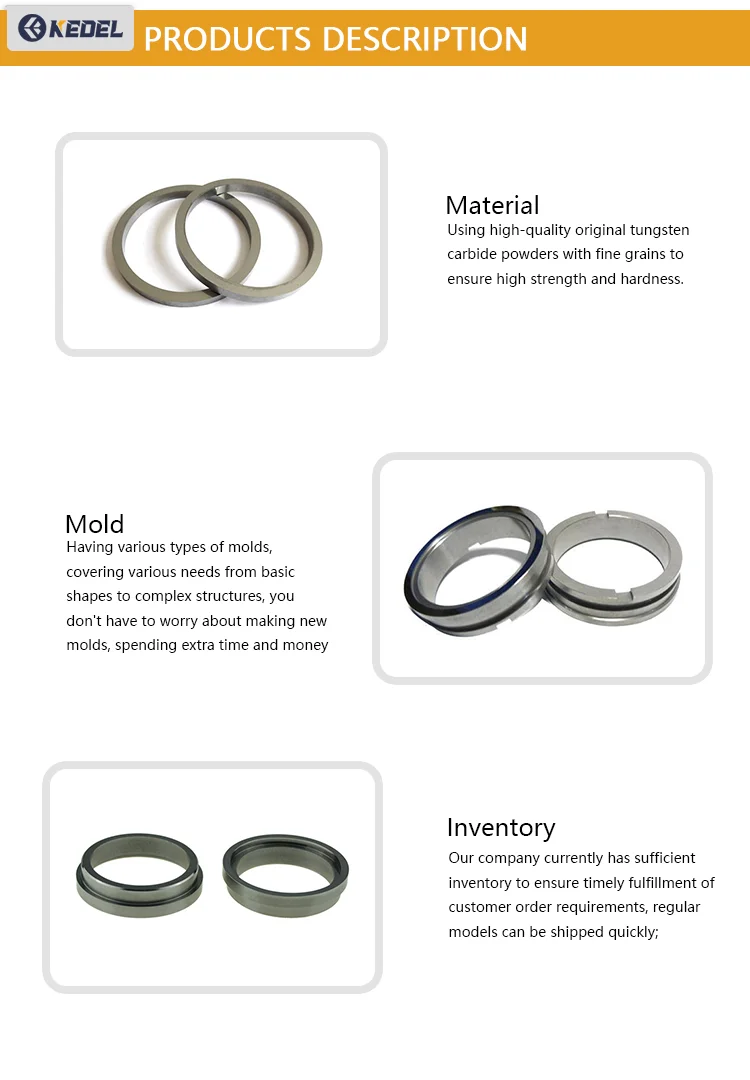

Products Description
Custom Cemented Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Chemical Equipment
Product Paramenters
Custom Cemented Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Chemical Equipment


Grade

Composition(% in weight)
Physical Properties


Grain size(μm)
Densityg/cm³(±0.1)
HardnessHRA(±0.5)
TRS Mpa(min)
Porosity
WC
Ni
Ti
TaC
A/B/C
KD115/YG6X
93.5
6.0
-
0.5
14.90
93.0
2700
A02/B00/C00
0.6-0.8
KD335/YG10X
89.0
10.5
-
0.5
14.40
91.8
3800
A02/B00/C00
0.6-0.8
KG6/YG6
94.0
6.0
-
-
14.90
90.5
2500
A02/B00/C00
1.2-1.6
KG8/YG8
92.0
8.0
-
-
14.75
90.0
3200
A02/B00/C00
1.2-1.6
KG9/YG9
91.0
9.0
-
-
14.60
89.0
3200
A02/B00/C00
1.2-1.6
KG9C/YG9C
91.0
9.0
-
-
14.60
88.0
3200
A02/B00/C00
1.6-2.4
KG10/KG10
90.0
10.0
-
-
14.50
88.5
3200
A02/B00/C00
1.2-1.6
KG11/YG11
89.0
11.0
-
-
14.35
89.0
3200
A02/B00/C00
1.2-1.6
KG11C/YG11C
89.0
11.0
-
-
14.40
87.5
3000
A02/B00/C00
1.6-2.4
KG13/YG13
87.0
13.0
-
-
14.20
88.7
3500
A02/B00/C00
1.2-1.6
KG13C/YG13C
87.0
16.0
-
-
14.20
87.0
3500
A02/B00/C00
1.6-2.4
KG15/YG15
85.0
15.0
-
-
14.10
87.5
3500
A02/B00/C00
1.2-1.6
KG15C/YG15C
85.0
15.0
-
-
14.00
86.5
3500
A02/B00/C00
1.6-2.4
KD118/YG8X
91.5
8.5
-
-
14.50
93.6
3800
A02/B00/C00
0.4-0.6
KD338/YG12X
88.0
12.0
-
-
14.10
92.8
2200
A02/B00/C00
0.4-0.6
KD25/P25
77.4
8.5
6.5
6.0
12.60
91.8
2200
A02/B00/C00
1.0-1.6
KD35/P35
69.2
10.5
5.2
13.8
12.70
91.1
2500
A02/B00/C00
1.0-1.6
KD10/M10
83.4
7.0
4.5
4.0
13.25
93.0
2000
A02/B00/C00
0.8-1.2
KD20/M20
79.0
8.0
7.4
3.8
12.33
92.1
2200
A02/B00/C00
0.8-1.2
NOTE: Customization available per customer drawing or actual sample
Custom Cemented Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Chemical Equipment
Custom Cemented Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Chemical Equipment
Custom Cemented Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Chemical Equipment


Grade

Composition(% in weight)
Physical Properties
Equivalen
to
domestic
Densityg/cm³(±0.1)
HardnessHRA(±0.5)
TRS Mpa(min)
Porosity
A\B\C
Grain size(μm)
WC
Ni
Ti
KDN6
93.8
6.0
0.2
14.6-15.0
89.5-90.5
1800


A02\B00\C00
0.8-2.0
YN6
KDN7
92.8
7.0
0.2
14.4-14.8
89.0-90.0
1900
0.8-1.6
YN7
KDN8
91.8
8.0
0.2
14.5-14.8
89.0-90.0
2200
0.8-2.0
YN8
KDN12
87.8
12.0
0.2
14.0-14.4
87.5-88.5
2600
0.8-2.0
YN12
KDN15
84.8
15.0
0.2
13.7-14.2
86.5-88.0
2800
0.6-1.5
YN15

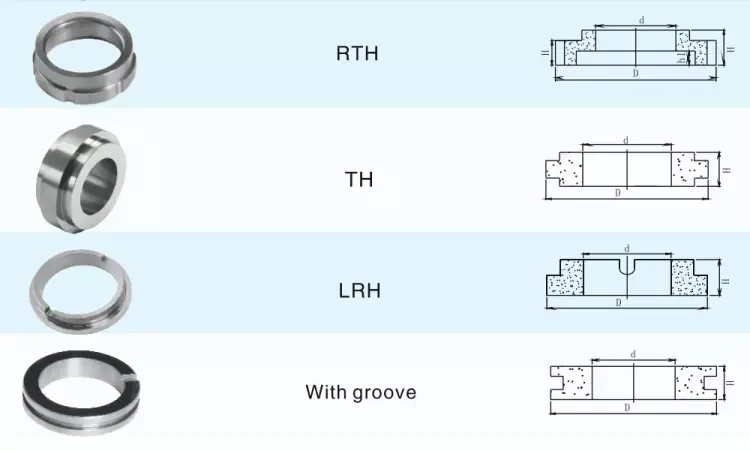

Details Images
Custom Cemented Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Chemical Equipment
Custom Cemented Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Chemical Equipment
Why Choose Us
Custom Cemented Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Chemical Equipment

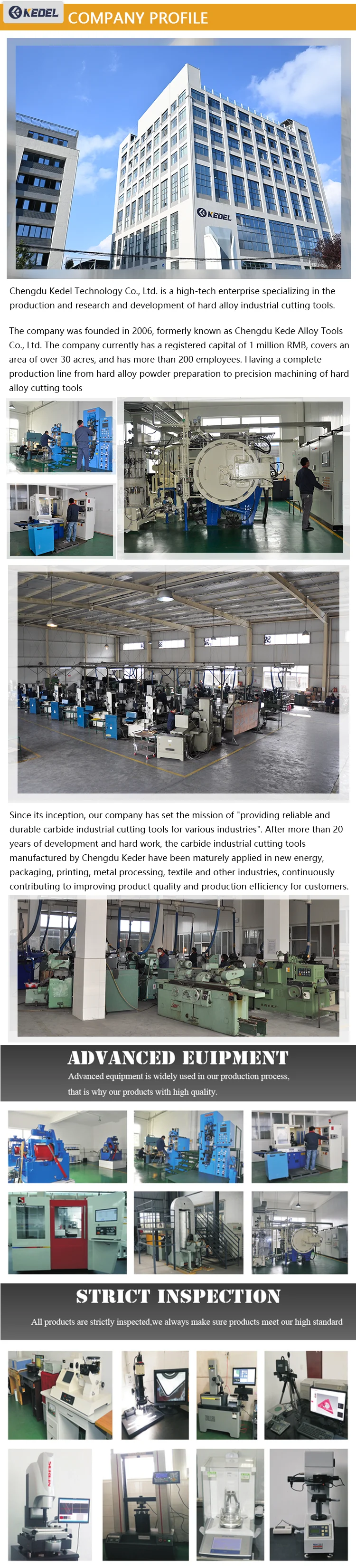

Company Profile
Custom Cemented Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Chemical Equipment
Exhibition
Custom Cemented Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Chemical Equipment
Custom Cemented Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Chemical Equipment
Custom Cemented Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Chemical Equipment
Custom Cemented Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Chemical Equipment
In our journey at Kedel Technology Co., Ltd. in Chengdu, every encounter with you is our honor. We are well aware that being able to stop here among the many choices is our greatest support and recognition. Your satisfaction is our relentless pursuit, and every positive review and repurchase is the driving force that inspires us to keep moving forward
